Storage Efficiency Increased 8x by Replacing Elasticsearch

Zhiqiang Cao (NavInfo)
Zhiqiang Cao (NavInfo)
/
Share on LinkedIn

NavInfo’s data storage system was under great pressure to process massive amounts of vehicle location tracking data—there were about 20 million location records per minute. The Elasticsearch platform they used not only caused a serious waste of physical resources, but had a query bottleneck. So there was an urgent need to find a more efficient database. This blog describes NavInfo’s relevant and practical experience in database selection, testing, deployment and migration.

Project Introduction

A vehicle location tracking project faced the prospect of consuming 80% of its storage in less than half a month. The volume of vehicle location data had reached 20 million records/minute and it was overwhelming the Elasticsearch cluster. The cluster consisted of 15 nodes with each node being 32 cores, 48GB RAM and 2 TB of disk space. IO operations were leading to instability of the PaaS layer and also affecting other dependent resources, such as cloud hosts and middleware. It was clear that some changes needed to be made immediately.

Given the volume of data, characteristics of data and the massive processing requirements, we concluded that what was needed was a time series database (TSDB). We made the choice of TDengine based on the following dimensions:

  • Performance Improvement – Data ingestion, query and storage performance needed to be improved.
  • Cost Reduction – we needed to reduce hardware and/or cloud service costs
  • Simple Architecture – We needed to simplify the architecture of the system.
  • Scalability/High Availability – We needed open source software that included clustering.

Performance Testing

We wanted to take advantage of the write performance of TDengine and wanted to run stress tests. We selected location data generated by some business scenarios for the write performance testing. The testing environment is shown in the following figure:

  • TDengine cluster server: (4 CPU, 8G RAM, 400G Disk) * 1(16 CPU, 24G RAM, 400G Disk) * 1
  • TDengine version: 2.0.19.1
  • Elasticsearch server: (48 CPU 500G RAM 3.5T Disk) *1

We use 400,000 records/day/vehicle, for a total of 150 days and for 120 vehicles. The total number of records written was 7.2 billion, and the total number of threads was 40. The final performance comparison between TDengine and Elasticsearch for writing and storage is as follows:

Total RecordsTotal TimeRecords/SecondStorage
TDengine7.2 billion2 h 53 m690,0001142 GB (two copies)
Elasticsearch1.67 billion1 h 43 m270,0001004 GB

Summary: Compared with Elasticsearch, the storage space efficiency of TDengine is increased by 8 times, and the write performance is increased by 2.5 times.

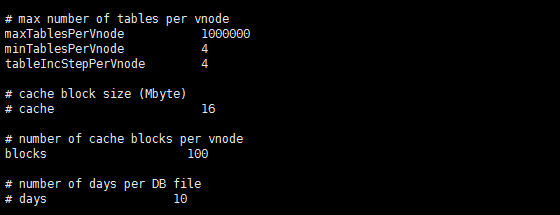

During initial testing we used default values for the TDengine configuration parameter “blocks” which is the number of cache blocks per vnode. In the subsequent test, we modified it to 100 to match our business needs and optimize TDengine.

Following the write performance test, we tested the query performance of TDengine along the following dimensions:

  • per day
  • per vehicle
  • per day per vehicle

The test results are shown in the following figure:

TDengineElasticsearch
RecordsLatencyRecordsLatency
Per DayCOUNT(*)48 million71 ms22.42 million3100 ms
SELECT(*)48 million296 ms22.42 million1789 ms
Per VehicleCOUNT(*)60 million683 ms21.16 million3740 ms
SELECT(*)60 million403 ms21.16 million1373 ms
Per Vehicle Per DayCOUNT(*)400,00089 ms335,000373 ms
SELECT(*)400,0002.8 s335,00035 s

Summary: Compared to Elasticsearch, “count(*)” query performance of TDengine is improved by 4 times, and “select*” query performance is improved by 3-10 times.

There were several other advantages of going with TDengine. Firstly it supports one of our business requirements i.e. querying the data of a single device for a certain period of time. Secondly, its query language supports SQL which reduced our learning cost to nearly zero. Thirdly it has almost zero maintenance and management costs. It is also an open source platform and provides transparency and has a large developer community. Lastly the stability and security of TDengine have been verified by many companies, and it is a relatively mature product.

After comprehensive testing and taking into account several perspectives, we finally chose to integrate TDengine into our system.

Actual Deployment

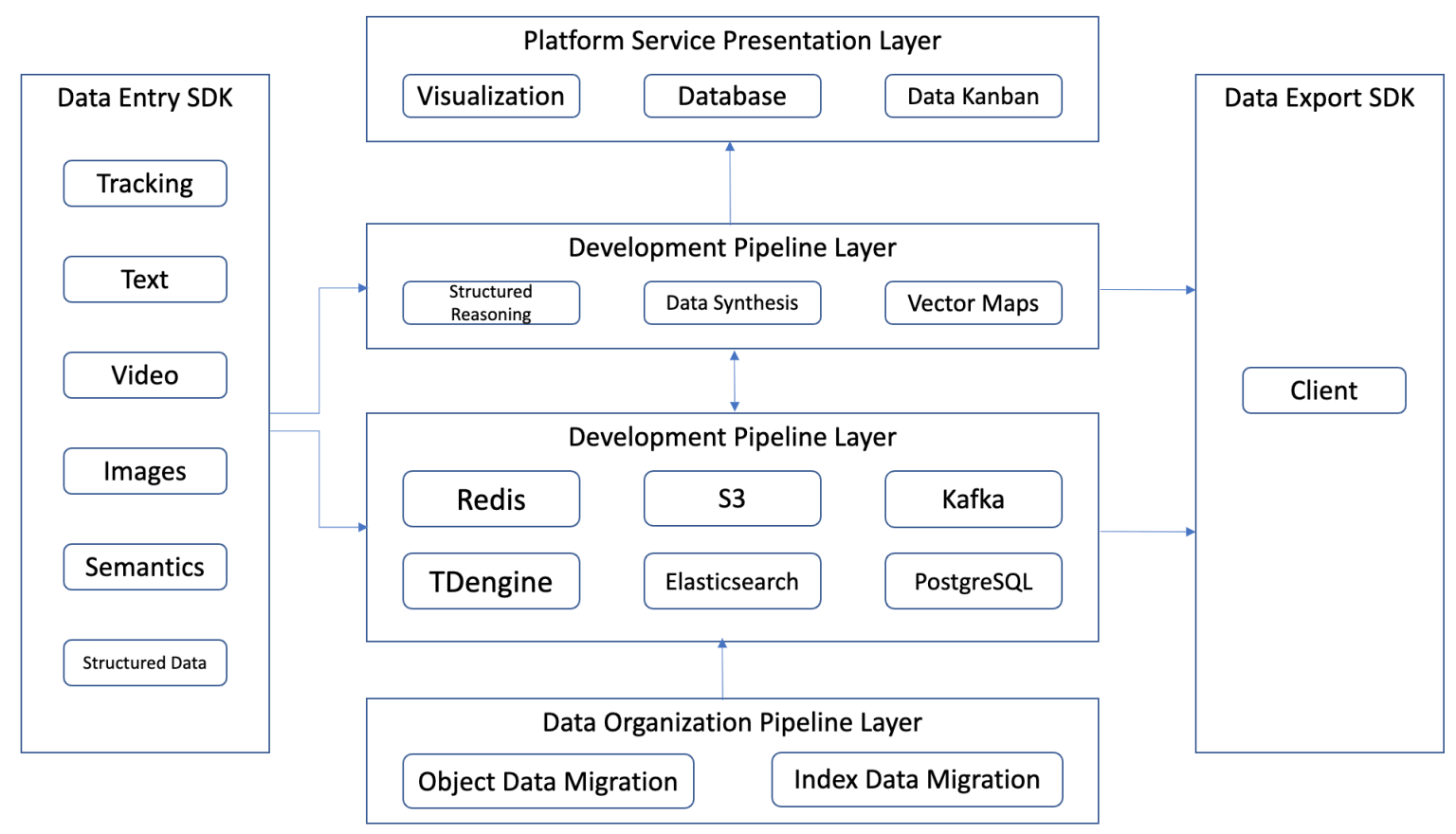

After connecting to TDengine, the business needs to write a large amount of location tracking data in near real time can be easily achieved, and the data department can generate billions of location tracking data every day. While meeting the storage requirements, the query performance can also meet the use of downstream business teams. The overall architecture diagram is as follows:

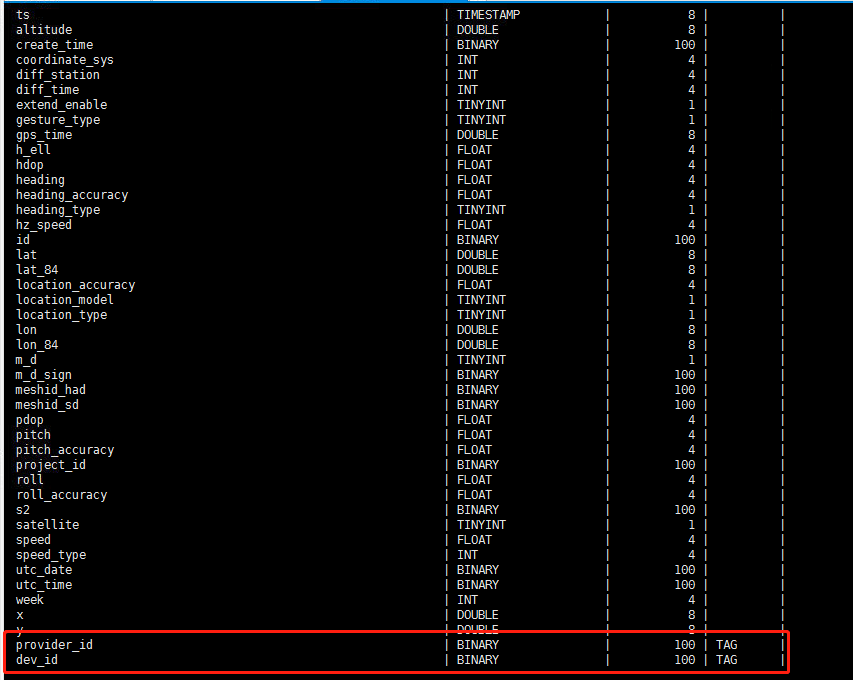

The schema for the table reflects the index relationship based on the tags of the device id and the provider id of the vehicle.

TDengine still has very high performance after several months of being deployed. Taking storage performance as an example, when we used Elasticsearch cluster, 15 nodes could only support data storage for 3 months. After deploying TDengine, a 7-node cluster with the same configuration has supported data storage for 5 months.

Working with TDengine

The process of migration was not at all difficult. TDengine supports several programming languages, and supports standard SQL, similar to MySQL. This greatly reduces the resource cost and labor cost required for migration. We developed our own migration tool based on TDengine APIs and the migration of 300T+ data was completed in a short period of time.

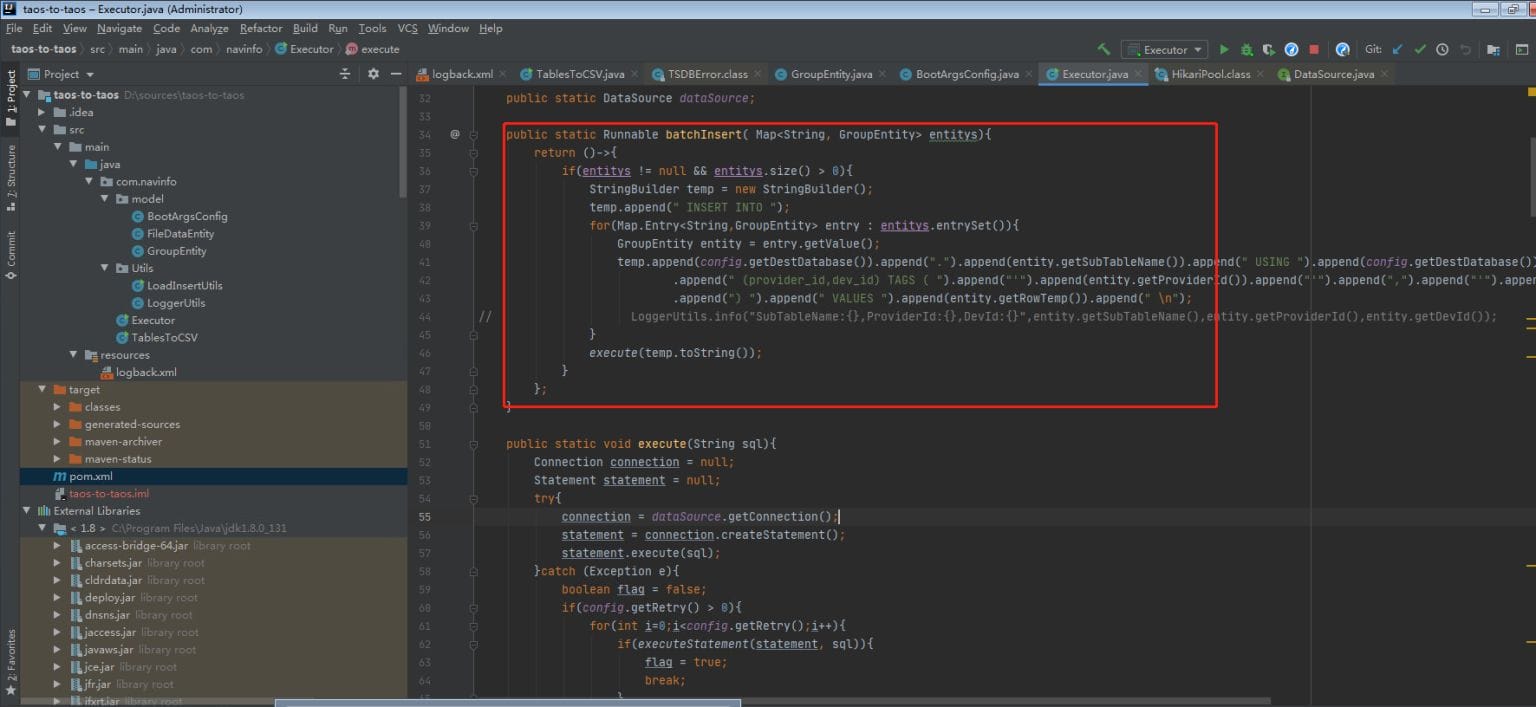

In terms of specific implementation, the migration tool uses multi-threading to read the data from CSV, and then write it to the new cluster in batches. The sample code is shown in the following figure:

We did encounter some issues with the implementation of TDengine but were able to resolve them with support from TDengine’s engineers. Below we share some of these issues so that other TDengine users can benefit.

One of the use cases was to “draw a rectangular box on the page”. We tried querying the latitude and longitude directly to obtain tracking data. However the latency was unusably high. The SQL query was as follows:

In order to resolve this, we use Spark to dynamically obtain the number of trajectory points of a certain vehicle provider through latitude and longitude, and achieve the final effect by drawing time points:

We did encounter linear decline in query performance for multi-dimensional and large-scale queries but we were able to resolve these issues by going through the extremely comprehensive TDengine documentation especially on cluster configuration and data modeling. We then implemented several optimizations that resolved our query performance issues.

Conclusion

Based on the excellent performance of TDengine in our current business application, we will consider migrating larger-scale trajectory data and time series data from other businesses into TDengine in the future. We also hope to leverage TDengine to mine the company’s internal data and extract value, accelerate the development of the EV charging business, and help Location Based Services to win more customers and provide value to our existing and future customers.
